Specification :-
Matching with the need of our clients we also offer best quality Dust Collector. Today Dust control is a serious problem for human life and the environment also. Dust generated during material handling or mining and it is also important to control dust because it harms the environment as well as the health..
Dust Collector machines are an important factor in meeting both environmental and health and safety requirements, helping and protecting employees and reducing site emissions. We provide following Collector systems.

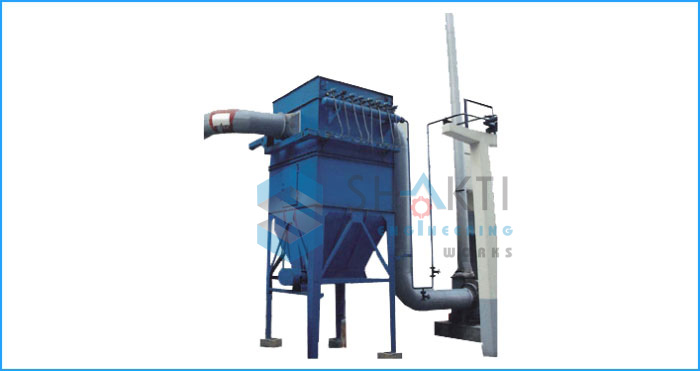

These pulse jet dust collector automatic clean bags. Bags are self cleaned automatically by utilizing pressurized air from pulse tank. Fine powder with air enter at bottom cone through baffle pipe. Dust is collected and comes out regularly from bottom while clean air comes out from plenum.
Bag house is Rectangular or circular design and comprises of central cylinder, bottom cone with baffle pipe, tube sheet, top plenum. It is provided with flanges and strengthened by flats from outside.
Bags are suspended from tube sheet. It is with metal inner cage and ventury. It is snap band lock type. Bags are removal top side. Bags are make Non woven polyester – 500 gsm – Anti static + Oil repellent finish. Pulse tank Provided with tank, solenoid valve, flexible hoses, blow pipe, ball valve, Pr. gauge, FR unit, flexible pipe.
Features :-
Application :-
Food & Spices, Pharma, Chemical, Minerals, Guar Gum, Starch, Pigment Colors, Dyestuffs - Fertilizer - Insecticides – Pesticides & etc.
